Active Propulsion System

Typhoon 400N

High-precision turbojet engine engineered for professional UAV systems and tactical aerospace applications. Precision balanced to 0.01g.

contact us

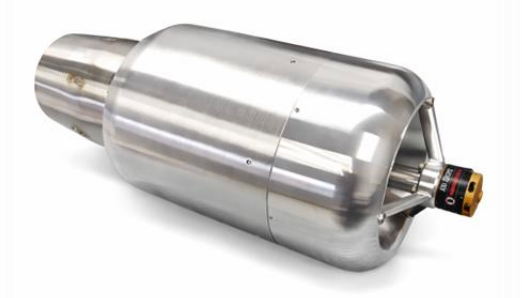

HT-400N Turbine Engine
Max RPM
100,000
Thrust
400N

Technical Datasheet

Reference ID: HT-JET-400-A1

Max power outputrocket_launch
400N
Weightmonitor_weight
3kg
Operational Rangespeed
100,000MAX RPM

Engineering Specifications

Fuel flow @max RPM1.35 L/min
Dimensions149mm (diameter) x 348mm
Max EGT temperature800°C
Run time @max RPM10 hours
FuelJet A-1 fuel with 5% mix of Mobile Jet Oil II

Request availability

contact us

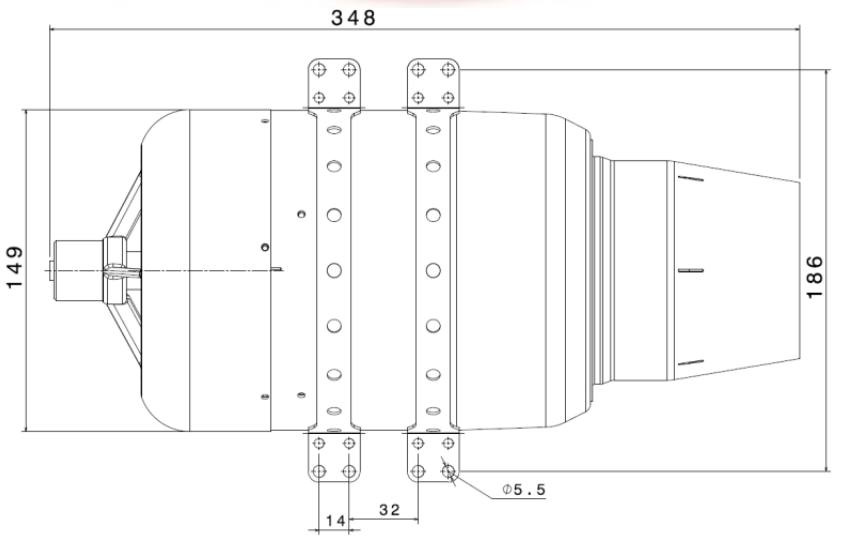

HT-400N Blueprint drawing

Advanced Metallurgy & Precision Machining

The HT-400N utilizes a proprietary nickel-chromium superalloy for the turbine wheel, enabling continuous operation at extreme temperatures without creep or thermal fatigue.

  • check_circle
    Dynamic BalancingEvery rotor is balanced to G0.4 standard for vibration-free operation.
  • check_circle
    Integrated ECUProprietary logic for fuel management and real-time telemetry output.
